WCS - Web Coverage Service
| Operation | Description |
|---|---|
| GetCapabilities | Retrieves a list of the server’s data, as well as valid WCS operations and parameters |
| DescribeCoverage | Retrieves an XML document that fully describes the request coverages. |
| GetCoverage | Returns a coverage in a well known format. Like a WMS GetMap request, but with several extensions to support the retrieval of coverages. |
GetCapabilities

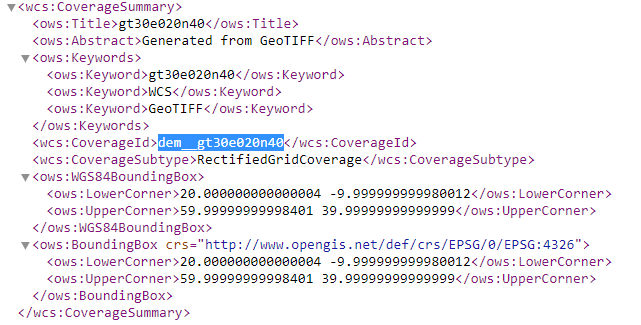

A WCS server responding to a GetCapabilities request returns metadata about the service, including supported operations and parameters, and a list of the available layers.
Version 1.0.0
<WCS_SERVICE_URL>/ows?
service=WCS&
version=1.0.0&
request=GetCapabilities
Response example
Response Example
<?xml version="1.0" encoding="UTF-8"?>
<wcs:WCS_Capabilities version="1.0.0" xmlns:wcs="http://www.opengis.net/wcs" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:ogc="http://www.opengis.net/ogc" xmlns:ows="http://www.opengis.net/ows/1.1" xmlns:gml="http://www.opengis.net/gml" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.opengis.net/wcs <WCS_SERVICE_URL>/schemas/wcs/1.0.0/wcsCapabilities.xsd" updateSequence="19">
<wcs:Service>
<wcs:description/>
<wcs:name>WCS</wcs:name>
<wcs:label/>
<wcs:fees>NONE</wcs:fees>
<wcs:accessConstraints>NONE</wcs:accessConstraints>
</wcs:Service>
<wcs:Capability>
<wcs:Request>
<wcs:GetCapabilities>
<wcs:DCPType>
<wcs:HTTP>
<wcs:Get>
<wcs:OnlineResource xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</wcs:Get>
</wcs:HTTP>
</wcs:DCPType>
<wcs:DCPType>
<wcs:HTTP>
<wcs:Post>
<wcs:OnlineResource xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</wcs:Post>
</wcs:HTTP>
</wcs:DCPType>
</wcs:GetCapabilities>
<wcs:DescribeCoverage>
<wcs:DCPType>
<wcs:HTTP>
<wcs:Get>
<wcs:OnlineResource xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</wcs:Get>
</wcs:HTTP>
</wcs:DCPType>
<wcs:DCPType>
<wcs:HTTP>
<wcs:Post>
<wcs:OnlineResource xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</wcs:Post>
</wcs:HTTP>
</wcs:DCPType>
</wcs:DescribeCoverage>
<wcs:GetCoverage>
<wcs:DCPType>
<wcs:HTTP>
<wcs:Get>
<wcs:OnlineResource xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</wcs:Get>
</wcs:HTTP>
</wcs:DCPType>
<wcs:DCPType>
<wcs:HTTP>
<wcs:Post>
<wcs:OnlineResource xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</wcs:Post>
</wcs:HTTP>
</wcs:DCPType>
</wcs:GetCoverage>
</wcs:Request>
<wcs:Exception>
<wcs:Format>application/vnd.ogc.se_xml</wcs:Format>
</wcs:Exception>
</wcs:Capability>
<wcs:ContentMetadata>
<wcs:CoverageOfferingBrief>
<wcs:description>Generated from GeoTIFF</wcs:description>
<wcs:name>dem:mimad</wcs:name>
<wcs:label>mimad</wcs:label>
<wcs:lonLatEnvelope srsName="urn:ogc:def:crs:OGC:1.3:CRS84">
<gml:pos>32.70697763422942 29.149161895068794</gml:pos>
<gml:pos>37.071150249328454 34.62339561526329</gml:pos>
</wcs:lonLatEnvelope>
<wcs:keywords>
<wcs:keyword>mimad</wcs:keyword>
<wcs:keyword>WCS</wcs:keyword>
<wcs:keyword>GeoTIFF</wcs:keyword>
</wcs:keywords>
</wcs:CoverageOfferingBrief>
<wcs:CoverageOfferingBrief>
<wcs:description>Generated from GeoTIFF</wcs:description>
<wcs:name>dem:srtm30</wcs:name>
<wcs:label>srtm30</wcs:label>
<wcs:lonLatEnvelope srsName="urn:ogc:def:crs:OGC:1.3:CRS84">
<gml:pos>34.716796875 32.16796875</gml:pos>
<gml:pos>35.68359375 32.958984375</gml:pos>
</wcs:lonLatEnvelope>
<wcs:keywords>
<wcs:keyword>srtm30</wcs:keyword>
<wcs:keyword>WCS</wcs:keyword>
<wcs:keyword>GeoTIFF</wcs:keyword>
</wcs:keywords>
</wcs:CoverageOfferingBrief>
</wcs:ContentMetadata>
</wcs:WCS_Capabilities>
Version 2.0.1
<WCS_SERVICE_URL>/ows?
service=WCS&
version=2.0.1&
request=GetCapabilities
Response example
Response Example
<?xml version="1.0" encoding="UTF-8"?>
<wcs:Capabilities xmlns:wcs="http://www.opengis.net/wcs/2.0" xmlns:ows="http://www.opengis.net/ows/2.0" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:gmlcov="http://www.opengis.net/gmlcov/1.0" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.0.1" updateSequence="16" xmlns:int="https://www.opengis.net/wcs/interpolation/1.0" xmlns:crs="http://www.opengis.net/wcs/crs/1.0" xmlns:inspire_common="http://inspire.ec.europa.eu/schemas/common/1.0" xmlns:inspire_dls="http://inspire.ec.europa.eu/schemas/inspire_dls/1.0" xsi:schemaLocation=" http://www.opengis.net/wcs/2.0 http://schemas.opengis.net/wcs/2.0/wcsGetCapabilities.xsd http://inspire.ec.europa.eu/schemas/inspire_dls/1.0 https://inspire.ec.europa.eu/schemas/inspire_dls/1.0/inspire_dls.xsd">
<ows:ServiceIdentification>
<ows:Title/>
<ows:Abstract/>
<ows:ServiceType>urn:ogc:service:wcs</ows:ServiceType>
<ows:ServiceTypeVersion>2.0.1</ows:ServiceTypeVersion>
<ows:ServiceTypeVersion>1.1.1</ows:ServiceTypeVersion>
<ows:ServiceTypeVersion>1.1.0</ows:ServiceTypeVersion>
<ows:Profile>http://www.opengis.net/spec/WCS/2.0/conf/core</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_protocol-binding_get-kvp/1.0.1</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_protocol-binding_post-xml/1.0</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_crs/1.0/conf/crs-gridded-coverage</ows:Profile>
<ows:Profile>
<![CDATA[ http://www.opengis.net/spec/WCS_geotiff-coverages/1.0/conf/geotiff-coverage]]>
</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/GMLCOV/1.0/conf/gml-coverage</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/GMLCOV/1.0/conf/special-format</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/GMLCOV/1.0/conf/multipart</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_scaling/1.0/conf/scaling</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_crs/1.0/conf/crs</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/interpolation</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/interpolation-per-axis</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/nearest-neighbor</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/linear</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/cubic</ows:Profile>
<ows:Profile>http://www.opengis.net/spec/WCS_service-extension_range-subsetting/1.0/conf/record-subsetting</ows:Profile>
<ows:Fees>NONE</ows:Fees>
<ows:AccessConstraints>NONE</ows:AccessConstraints>
</ows:ServiceIdentification>
<ows:ServiceProvider>
<ows:ProviderName/>
<ows:ProviderSite xlink:href=""/>
<ows:ServiceContact>
<ows:ContactInfo>
<ows:Phone/>
<ows:Address/>
</ows:ContactInfo>
</ows:ServiceContact>
</ows:ServiceProvider>
<ows:OperationsMetadata>
<ows:Operation name="GetCapabilities">
<ows:DCP>
<ows:HTTP>
<ows:Get xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</ows:HTTP>
</ows:DCP>
<ows:DCP>
<ows:HTTP>
<ows:Post xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</ows:HTTP>
</ows:DCP>
</ows:Operation>
<ows:Operation name="DescribeCoverage">
<ows:DCP>
<ows:HTTP>
<ows:Get xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</ows:HTTP>
</ows:DCP>
<ows:DCP>
<ows:HTTP>
<ows:Post xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</ows:HTTP>
</ows:DCP>
</ows:Operation>
<ows:Operation name="GetCoverage">
<ows:DCP>
<ows:HTTP>
<ows:Get xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</ows:HTTP>
</ows:DCP>
<ows:DCP>
<ows:HTTP>
<ows:Post xlink:href="<WCS_SERVICE_URL>/wcs?"/>
</ows:HTTP>
</ows:DCP>
</ows:Operation>
<ows:Constraint name="PostEncoding">
<ows:AllowedValues>
<ows:Value>XML</ows:Value>
</ows:AllowedValues>
</ows:Constraint>
</ows:OperationsMetadata>
<wcs:ServiceMetadata>
<wcs:formatSupported>application/gml+xml</wcs:formatSupported>
<wcs:formatSupported>image/jpeg</wcs:formatSupported>
<wcs:formatSupported>image/png</wcs:formatSupported>
<wcs:formatSupported>image/tiff</wcs:formatSupported>
<wcs:formatSupported>image/tiff;application=geotiff</wcs:formatSupported>
<wcs:formatSupported>text/plain</wcs:formatSupported>
<wcs:Extension>
<crs:CrsMetadata xmlns:crs="http://www.opengis.net/wcs/crs/1.0">
...
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/3857</crs:crsSupported>
...
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4326</crs:crsSupported>
...
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32600</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32601</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32602</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32603</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32604</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32605</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32606</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32607</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32608</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32609</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32610</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32611</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32612</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32613</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32614</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32615</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32616</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32617</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32618</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32619</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32620</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32621</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32622</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32623</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32624</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32625</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32626</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32627</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32628</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32629</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32630</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32631</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32632</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32633</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32634</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32635</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32636</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32637</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32638</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32639</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32640</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32641</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32642</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32643</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32644</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32645</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32646</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32647</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32648</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32649</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32650</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32651</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32652</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32653</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32654</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32655</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32656</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32657</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32658</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32659</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32660</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32661</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32662</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32663</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32664</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32665</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32666</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32667</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32700</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32701</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32702</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32703</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32704</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32705</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32706</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32707</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32708</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32709</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32710</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32711</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32712</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32713</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32714</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32715</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32716</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32717</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32718</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32719</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32720</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32721</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32722</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32723</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32724</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32725</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32726</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32727</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32728</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32729</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32730</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32731</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32732</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32733</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32734</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32735</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32736</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32737</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32738</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32739</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32740</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32741</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32742</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32743</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32744</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32745</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32746</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32747</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32748</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32749</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32750</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32751</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32752</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32753</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32754</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32755</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32756</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32757</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32758</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32759</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32760</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32761</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32762</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32763</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32764</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32765</crs:crsSupported>
<crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32766</crs:crsSupported>
...
</crs:CrsMetadata>
<int:InterpolationMetadata xmlns:int="https://www.opengis.net/wcs/interpolation/1.0">
<int:InterpolationSupported>http://www.opengis.net/def/interpolation/OGC/1/nearest-neighbor</int:InterpolationSupported>
<int:InterpolationSupported>http://www.opengis.net/def/interpolation/OGC/1/linear</int:InterpolationSupported>
<int:InterpolationSupported>http://www.opengis.net/def/interpolation/OGC/1/cubic</int:InterpolationSupported>
</int:InterpolationMetadata>
</wcs:Extension>
</wcs:ServiceMetadata>
<wcs:Contents>
<wcs:CoverageSummary>
<ows:Title>mimad</ows:Title>
<ows:Keywords>
<ows:Keyword>mimad</ows:Keyword>
<ows:Keyword>WCS</ows:Keyword>
<ows:Keyword>GeoTIFF</ows:Keyword>
</ows:Keywords>
<wcs:CoverageId>dem__mimad</wcs:CoverageId>
<wcs:CoverageSubtype>RectifiedGridCoverage</wcs:CoverageSubtype>
<ows:BoundingBox crs="http://www.opengis.net/def/crs/EPSG/0/32636">
<ows:LowerCorner>473139.25219177455 3230615.3954787063</ows:LowerCorner>
<ows:UpperCorner>873608.5831505858 3831319.391916923</ows:UpperCorner>
</ows:BoundingBox>
<ows:WGS84BoundingBox>
<ows:LowerCorner>32.70697763422942 29.149161895068794</ows:LowerCorner>
<ows:UpperCorner>37.071150249328454 34.62339561526329</ows:UpperCorner>
</ows:WGS84BoundingBox>
</wcs:CoverageSummary>
<wcs:CoverageSummary>
<ows:Title>mimad</ows:Title>
<ows:Keywords>
<ows:Keyword>mimad</ows:Keyword>
<ows:Keyword>WCS</ows:Keyword>
<ows:Keyword>GeoTIFF</ows:Keyword>
</ows:Keywords>
<wcs:CoverageId>dem__mimad</wcs:CoverageId>
<wcs:CoverageSubtype>RectifiedGridCoverage</wcs:CoverageSubtype>
<ows:BoundingBox crs="http://www.opengis.net/def/crs/EPSG/0/32636">
<ows:LowerCorner>473139.25219177455 3230615.3954787063</ows:LowerCorner>
<ows:UpperCorner>873608.5831505858 3831319.391916923</ows:UpperCorner>
</ows:BoundingBox>
<ows:WGS84BoundingBox>
<ows:LowerCorner>32.70697763422942 29.149161895068794</ows:LowerCorner>
<ows:UpperCorner>37.071150249328454 34.62339561526329</ows:UpperCorner>
</ows:WGS84BoundingBox>
</wcs:CoverageSummary>
<wcs:CoverageSummary>
<ows:Title>srtm30</ows:Title>
<ows:Keywords>
<ows:Keyword>srtm30</ows:Keyword>
<ows:Keyword>WCS</ows:Keyword>
<ows:Keyword>GeoTIFF</ows:Keyword>
</ows:Keywords>
<wcs:CoverageId>dem__srtm30</wcs:CoverageId>
<wcs:CoverageSubtype>RectifiedGridCoverage</wcs:CoverageSubtype>
<ows:BoundingBox crs="http://www.opengis.net/def/crs/EPSG/0/4326">
<ows:LowerCorner>34.716796875 32.16796875</ows:LowerCorner>
<ows:UpperCorner>35.68359375 32.958984375</ows:UpperCorner>
</ows:BoundingBox>
<ows:WGS84BoundingBox>
<ows:LowerCorner>34.716796875 32.16796875</ows:LowerCorner>
<ows:UpperCorner>35.68359375 32.958984375</ows:UpperCorner>
</ows:WGS84BoundingBox>
</wcs:CoverageSummary>
<wcs:Extension/>
</wcs:Contents>
</wcs:Capabilities>
This request shows an XML file containing the WCS 2.0.1 GetCapabilities response (the following pictures contains the dem__gt30e020n40 layer related sub-section).
Understanding the capabilities response
| Tag name | Use |
|---|---|
| OperationsMetadata | Provides details about the service's available operations. |
| formatSupported | Located under the ServiceMetadata tag.Lists the supported formats. |
| Extension | Located under the ServiceMetadata tag.Lists all of the supported crs. |
| InterpolationMetadata | Located under the Extension tag.Lists all of the available interpolation methods available. |
| Contents | Information about the available coverages. |
DescribeCoverage
The purpose of the DescribeCoverage request is to additional information about a Coverage a client wants to query. It returns information about the crs, the metadata, the domain, the range and the formats it is available in. A client generally will need to issue a DescribeCoverage request before being sure it can make the proper GetCoverage request
Version 1.0.0
<WCS_SERVICE_URL>/ows?
SERVICE=WCS&
VERSION=1.0.0&
REQUEST=DescribeCoverage&
COVERAGE=n30_e034_1arc_v3
Response example
<?xml version="1.0" encoding="UTF-8"?>
<wcs:CoverageDescription xmlns:wcs="http://www.opengis.net/wcs" xmlns:gml="http://www.opengis.net/gml" xmlns:ogc="http://www.opengis.net/ogc" xmlns:ows="http://www.opengis.net/ows/1.1" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.opengis.net/wcs http://dem-dev-geoserver-development-dem-dev.apps.v0h0bdx6.eastus.aroapp.io/schemas/wcs/1.0.0/describeCoverage.xsd" version="1.0.0">
<wcs:CoverageOffering>
<wcs:description>Generated from GeoTIFF</wcs:description>
<wcs:name>dem:n30_e034_1arc_v3</wcs:name>
<wcs:label>n30_e034_1arc_v3</wcs:label>
<wcs:lonLatEnvelope srsName="urn:ogc:def:crs:OGC:1.3:CRS84">
<gml:pos>33.99986111111111 29.999861111111112</gml:pos>
<gml:pos>35.000138888888884 31.00013888888889</gml:pos>
</wcs:lonLatEnvelope>
<wcs:keywords>
<wcs:keyword>n30_e034_1arc_v3</wcs:keyword>
<wcs:keyword>WCS</wcs:keyword>
<wcs:keyword>GeoTIFF</wcs:keyword>
</wcs:keywords>
<wcs:domainSet>
<wcs:spatialDomain>
<gml:Envelope srsName="EPSG:4326">
<gml:pos>33.99986111111111 29.999861111111112</gml:pos>
<gml:pos>35.000138888888884 31.00013888888889</gml:pos>
</gml:Envelope>
<gml:RectifiedGrid dimension="2" srsName="EPSG:4326">
<gml:limits>
<gml:GridEnvelope>
<gml:low>0 0</gml:low>
<gml:high>3600 3600</gml:high>
</gml:GridEnvelope>
</gml:limits>
<gml:axisName>x</gml:axisName>
<gml:axisName>y</gml:axisName>
<gml:origin>
<gml:pos>34.0 31.000000000000004</gml:pos>
</gml:origin>
<gml:offsetVector>2.777777777777778E-4 0.0</gml:offsetVector>
<gml:offsetVector>0.0 -2.777777777777778E-4</gml:offsetVector>
</gml:RectifiedGrid>
</wcs:spatialDomain>
</wcs:domainSet>
<wcs:rangeSet>
<wcs:RangeSet>
<wcs:name>n30_e034_1arc_v3</wcs:name>
<wcs:label>n30_e034_1arc_v3</wcs:label>
<wcs:axisDescription>
<wcs:AxisDescription>
<wcs:name>Band</wcs:name>
<wcs:label>Band</wcs:label>
<wcs:values>
<wcs:singleValue>1</wcs:singleValue>
</wcs:values>
</wcs:AxisDescription>
</wcs:axisDescription>
</wcs:RangeSet>
</wcs:rangeSet>
<wcs:supportedCRSs>
<wcs:requestResponseCRSs>EPSG:4326</wcs:requestResponseCRSs>
</wcs:supportedCRSs>
<wcs:supportedFormats nativeFormat="GeoTIFF">
<wcs:formats>AIG</wcs:formats>
<wcs:formats>ArcGrid</wcs:formats>
<wcs:formats>DTED</wcs:formats>
<wcs:formats>EHdr</wcs:formats>
<wcs:formats>ENVIHdr</wcs:formats>
<wcs:formats>ERDASImg</wcs:formats>
<wcs:formats>GeoTIFF</wcs:formats>
<wcs:formats>GIF</wcs:formats>
<wcs:formats>GeoPackage (mosaic)</wcs:formats>
<wcs:formats>ImageMosaic</wcs:formats>
<wcs:formats>ImagePyramid</wcs:formats>
<wcs:formats>JPEG</wcs:formats>
<wcs:formats>NITF</wcs:formats>
<wcs:formats>PNG</wcs:formats>
<wcs:formats>RPFTOC</wcs:formats>
<wcs:formats>RST</wcs:formats>
<wcs:formats>SRP</wcs:formats>
<wcs:formats>TIFF</wcs:formats>
<wcs:formats>VRT</wcs:formats>
</wcs:supportedFormats>
<wcs:supportedInterpolations default="nearest neighbor">
<wcs:interpolationMethod>nearest neighbor</wcs:interpolationMethod>
<wcs:interpolationMethod>bilinear</wcs:interpolationMethod>
<wcs:interpolationMethod>bicubic</wcs:interpolationMethod>
</wcs:supportedInterpolations>
</wcs:CoverageOffering>
</wcs:CoverageDescription>
Version 2.0.1
curl --location --request GET '<WCS_SERVICE_URL>/wcs?request=DescribeCoverage&version=2.0.1&coverageId=srtm30&token=<token>'
Response
<?xml version="1.0" encoding="UTF-8"?>
<wcs:CoverageDescriptions xmlns:wcs="http://www.opengis.net/wcs/2.0" xmlns:ows="http://www.opengis.net/ows/2.0" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:gmlcov="http://www.opengis.net/gmlcov/1.0" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:swe="http://www.opengis.net/swe/2.0" xmlns:wcsgs="http://www.geoserver.org/wcsgs/2.0" xsi:schemaLocation=" http://www.opengis.net/wcs/2.0 http://schemas.opengis.net/wcs/2.0/wcsDescribeCoverage.xsd http://www.geoserver.org/wcsgs/2.0 <WCS_SERVICE_URL>/schemas/wcs/2.0/wcsgs.xsd">
<wcs:CoverageDescription gml:id="dem__srtm30">
<gml:description>Generated from GeoTIFF</gml:description>
<gml:name>srtm30</gml:name>
<gml:boundedBy>
<gml:Envelope srsName="http://www.opengis.net/def/crs/EPSG/0/4326" axisLabels="Lat Long" uomLabels="Deg Deg" srsDimension="2">
<gml:lowerCorner>32.16796875 34.716796875</gml:lowerCorner>
<gml:upperCorner>32.958984375 35.68359375</gml:upperCorner>
</gml:Envelope>
</gml:boundedBy>
<wcs:CoverageId>dem__srtm30</wcs:CoverageId>
<gml:coverageFunction>
<gml:GridFunction>
<gml:sequenceRule axisOrder="+2 +1">Linear</gml:sequenceRule>
<gml:startPoint>0 0</gml:startPoint>
</gml:GridFunction>
</gml:coverageFunction>
<gmlcov:metadata>
<gmlcov:Extension>
<ows:Keywords>
<ows:Keyword>srtm30</ows:Keyword>
<ows:Keyword>WCS</ows:Keyword>
<ows:Keyword>GeoTIFF</ows:Keyword>
</ows:Keywords>
</gmlcov:Extension>
</gmlcov:metadata>
<gml:domainSet>
<gml:RectifiedGrid gml:id="grid00__dem__srtm30" dimension="2">
<gml:limits>
<gml:GridEnvelope>
<gml:low>0 0</gml:low>
<gml:high>2815 2303</gml:high>
</gml:GridEnvelope>
</gml:limits>
<gml:axisLabels>i j</gml:axisLabels>
<gml:origin>
<gml:Point gml:id="p00_dem__srtm30" srsName="http://www.opengis.net/def/crs/EPSG/0/4326">
<gml:pos>32.95881271362305 34.71696853637695</gml:pos>
</gml:Point>
</gml:origin>
<gml:offsetVector srsName="http://www.opengis.net/def/crs/EPSG/0/4326">0.0 3.4332275390625E-4</gml:offsetVector>
<gml:offsetVector srsName="http://www.opengis.net/def/crs/EPSG/0/4326">-3.4332275390625E-4 0.0</gml:offsetVector>
</gml:RectifiedGrid>
</gml:domainSet>
<gmlcov:rangeType>
<swe:DataRecord xmlns:swe="http://www.opengis.net/swe/2.0">
<swe:field name="GRAY_INDEX">
<swe:Quantity>
<swe:description>GRAY_INDEX</swe:description>
<swe:nilValues>
<swe:NilValues>
<swe:nilValue reason="http://www.opengis.net/def/nil/OGC/0/unknown">-32768.0</swe:nilValue>
</swe:NilValues>
</swe:nilValues>
<swe:uom code="W.m-2.Sr-1"/>
<swe:constraint>
<swe:AllowedValues>
<swe:interval>-32768 32767</swe:interval>
</swe:AllowedValues>
</swe:constraint>
</swe:Quantity>
</swe:field>
</swe:DataRecord>
</gmlcov:rangeType>
<wcs:ServiceParameters>
<wcs:CoverageSubtype>RectifiedGridCoverage</wcs:CoverageSubtype>
<wcs:nativeFormat>image/tiff</wcs:nativeFormat>
</wcs:ServiceParameters>
</wcs:CoverageDescription>
</wcs:CoverageDescriptions>
Understanding the describe coverage response
Notice the tag boundedBy, it describes the geographic extent of the coverage, It includes the following attributes:
| Attribute name | Details | Example |
|---|---|---|
| srsName | Coverage SRS | http://www.opengis.net/def/crs/EPSG/0/4326 |
| axisLabels | Labels to use to describe the coverage axis | Lat Long |
| srsDimension | Dimension of points in the coverage | 2 |
GetCoverage
The GetCoverage operation requests the actual spatial data. It can retrieve subsets of coverages, and the result can be either the coverage itself or a reference to it. The most powerful thing about a GetCoverage request is its ability to subset domains (height and time) and ranges. It can also do resampling, encode in different data formats, and return the resulting file in different ways.
Detailed explanation about params might be found here 🌐
Version 1.0.0
<WCS_SERVICE_URL>/wcs?
request=GetCoverage&
version=1.0.0&
coverage=srtm30&
format=image/tiff;application=geotiff&
crs=EPSG%3A4326&
bbox=35.13102,32.35306,35.37051,32.49437&
width=1000&
height=1000
Version 2.0.1
<WCS_SERVICE_URL>/wcs?
request=GetCoverage&
version=2.0.1&
coverageId=srtm30&
format=image/tiff;application=geotiff&
subset=Lat(32.35306,32.49437)&
subset=Long(35.13102,35.37051)
With this request we have successfully fetched data/image for n30_e034_1arc_v3 layer for EPSG:4326 projection and for defined BBOX! 🎉
